Sectional, roller or tilt: which door suits your garage?
Three door types dominate Australian garages, and they're genuinely different beasts, not just a look. Here's how they compare on the things that actually matter, and which tends to suit which kind of Newcastle garage.
| What matters | Sectional | Roller | Tilt |
|---|---|---|---|
| Headroom needed | ~300–400 mm (less with high-lift track) | ~200–250 mm, the least of the three | Moderate, plus outward swing clearance |
| Driveway clearance | None, moves up and back overhead | None | Needs space in front, the door swings out as it opens |
| Insulation | Best, solid panels and a tight seal give the widest range | Lower, unless you choose an insulated double-skin slat | Moderate, single panel, seal quality varies |
| Noise | Quietest, especially with a belt-drive opener | Can rattle unless well maintained | Moderate |
| Moving parts | More, hinges, rollers, multiple panels | Fewer than sectional | Fewest, lowest maintenance |
| Repairability | Spot-repairable, a single panel can be replaced | Curtain usually repaired or replaced as a unit | Legacy product, mostly a repair market |
| Best for | Modern builds, insulation priority, a wide double opening | Tight or low-ceiling garages, older inner suburbs, terraces | Replacing an existing tilt door; simple, budget-friendly |
Ranges above are the common Australian figures for each door type, your garage's actual headroom and clearance are measured on site.
Which suits a Newcastle garage?
Newcastle's housing runs coast to bush, and the door types roughly follow the same line:

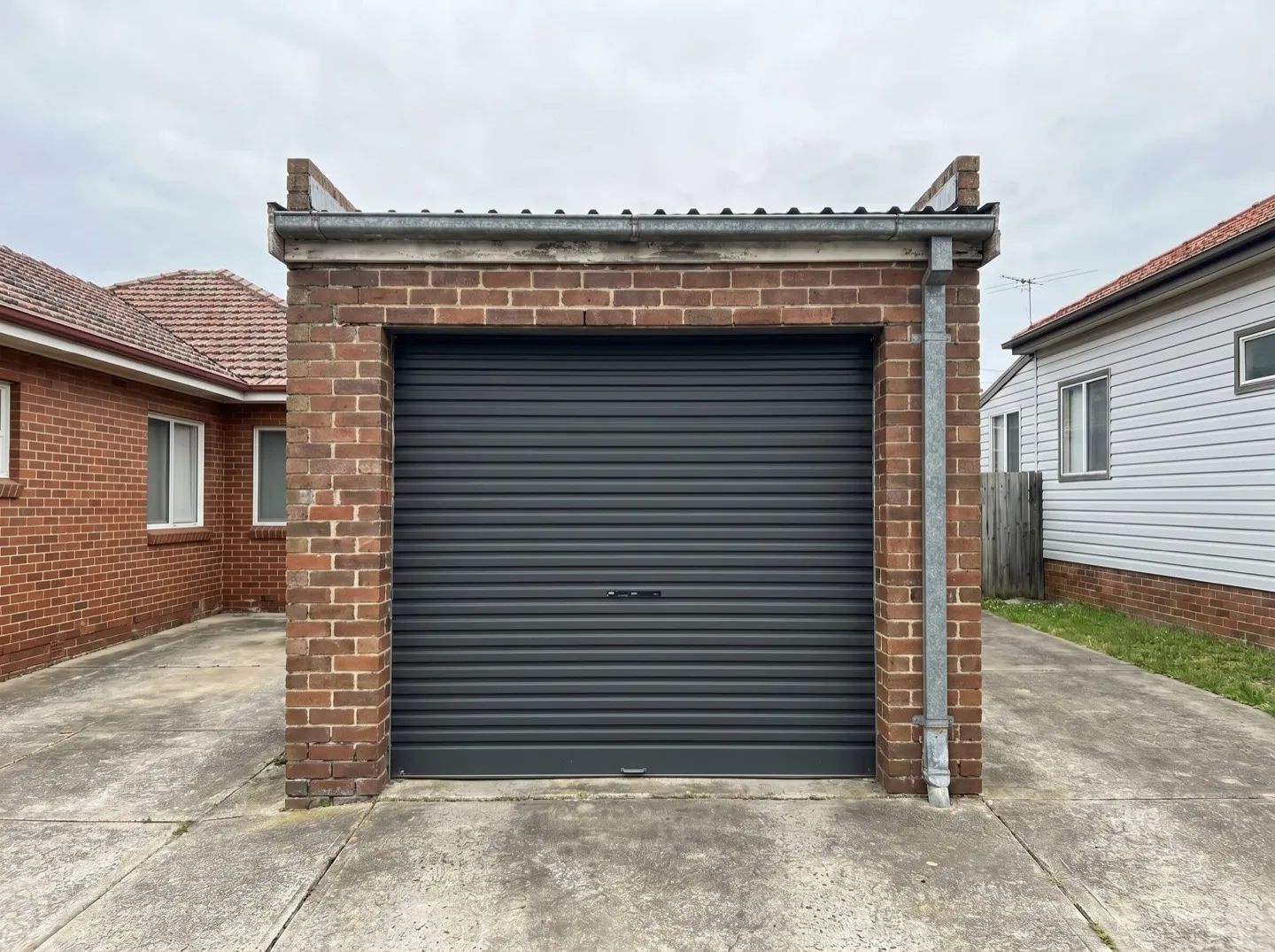

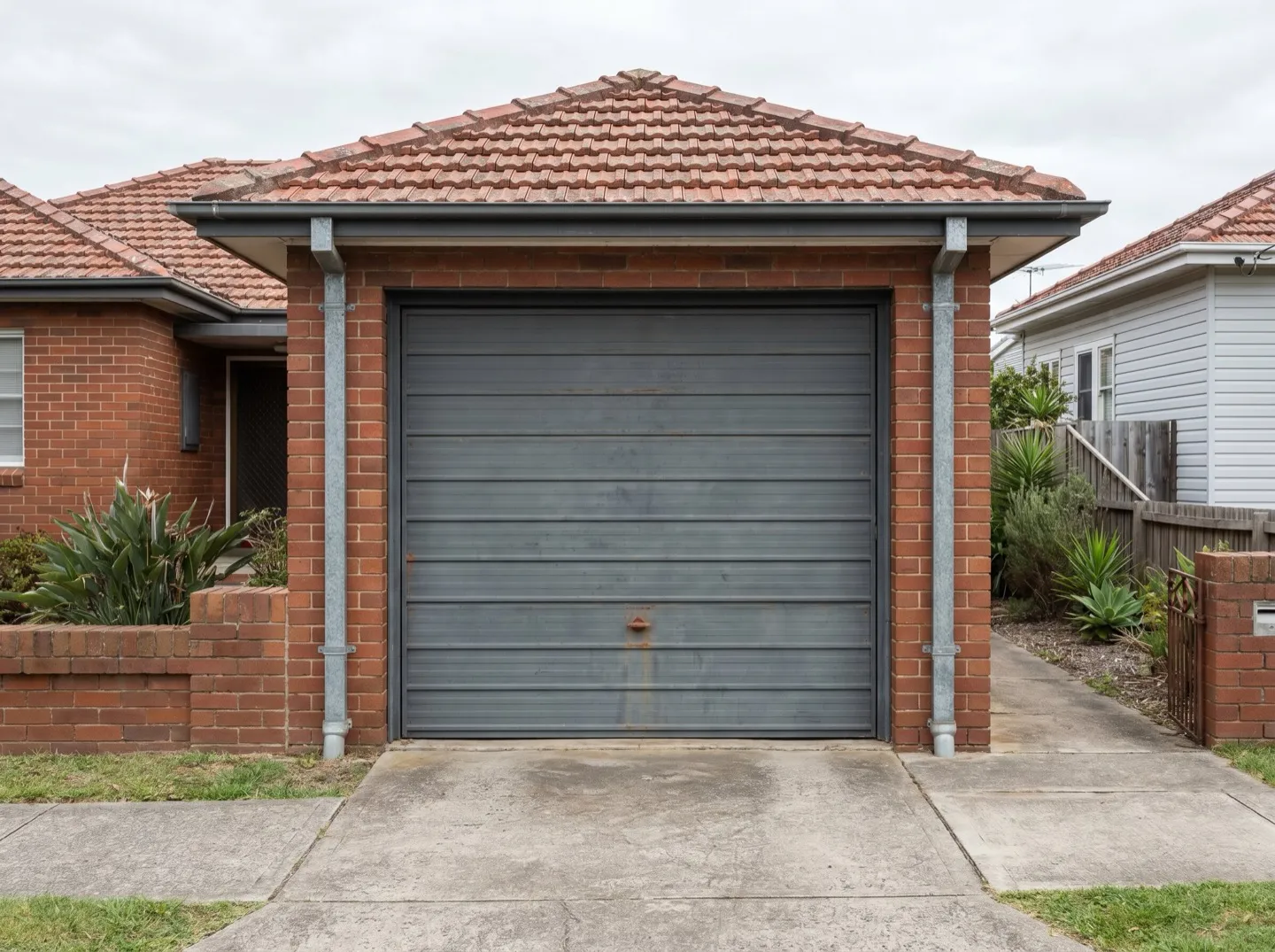

- Older inner suburbs (narrow lots, low headroom, terraces near the CBD) often can't take a sectional's headroom, so a roller is the natural fit, and many older garages still run a legacy tilt door due for replacement. See Mayfield & the inner ring.

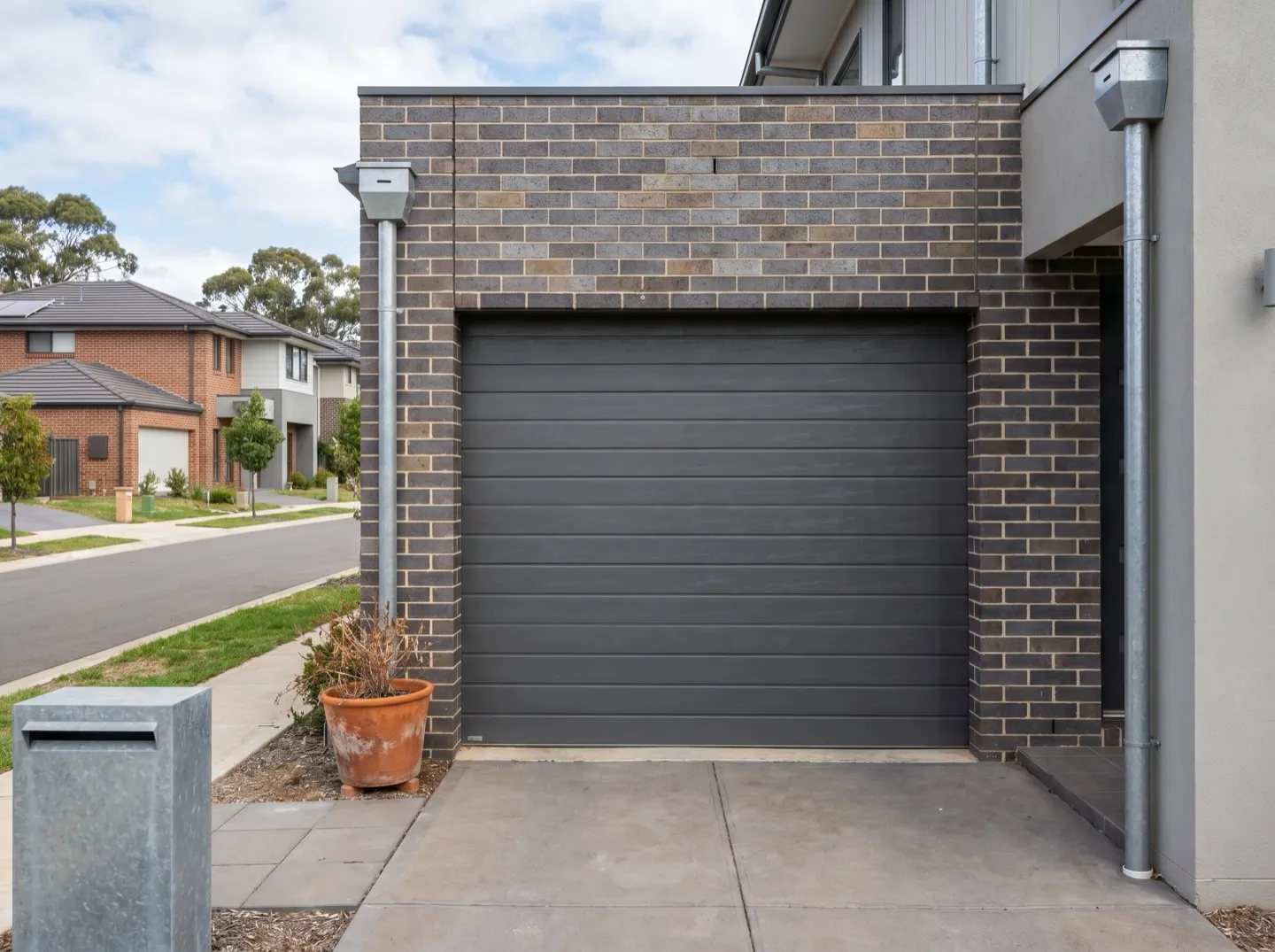

- New western estates (Fletcher, Cameron Park) are built for a wide double sectional, and an insulated panel is worth it on a west-facing garage that bakes in summer. See Fletcher & the estates.
- Coastal homes (Stockton, Merewether) can run any type, the bigger question there is corrosion-rated hardware, whatever the door. See doors near the salt.
A note on standards
Garage doors and their automatic openers are covered by Australian Standards (published by Standards Australia) and by the National Construction Code, maintained by the Australian Building Codes Board. Automatic openers include safety features, like the photo-eye beams that reverse the door on an obstruction, because a powered door is a real pinch and crush risk. We work to the relevant requirements; we don't claim a specific product holds a specific rating unless that's confirmed for the actual door.
Sources
- Standards Australia, the body that publishes the Australian Standards covering garage doors and automatic door openers.
- Australian Building Codes Board, maintains the National Construction Code, which governs building compliance for garage-door openings.
- Product Safety Australia (ACCC), consumer product safety, including powered doors and their pinch/crush hazards.
